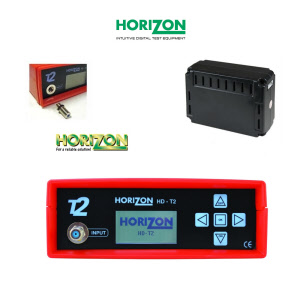

Horizon HD-T2 Terrestrial DVB-T2 Meter



Introducing the new HD‐T2. from Horizon Global Electronics Ltd. The HD‐T2 terrestrial installation meter has all the familiar easy to use features of Horizon terrestrial meter products with new DVB-T2 functions.

Once again Horizon Global Electronics Ltd is first to market with a cost effective solution for DVB‐T2 measurement and analysis.



Download Product Sheet..

Horizon HD-T2  Terrestrial T2 Meter

The HD-T2 includes the familiarity of the original Horizon meter products along with new DVB-T2 functions

The HD-T2 has been designed with ease of use in mind. A full scan will auto tune to the next available channel (Digital or Analogue). A Short scan will only step through the digital mux carriers of your chosen transmitter.

On-screen Spectrum displays the UHF 21-69 step through transmission. Manual Scan display also presents this as one full bandwidth screen to demonstrate the spread of Audio DAB, FM and Video VHF & Multiplex broadcasts.

Selecting a transmitter is easy, you can choose from regions or by entering the first half of the post code of the installation site.When selecting by post code you are given a choice of transmitters that cover that region. Power transmitters are marked with a plus symbol. The HD-TM Plus also features a favourite transmitter list for even faster access to the most commonly used transmitter selections

A Slope test function will enable you to compare RF levels of up to 6 predetermined MUX frequencies for the transmitter that you have selected. These levels are shown in a histogram format, slope calculation will take place at the press of a button.

The HD-T2 comes complete with a ripstop nylon carry case, mains charger cable, in-car charger, rain cover, attenuators and USB lead for data transfer.





Specification

  • Easy to read 128 x 64 pixel high brightness LCD (Adjustable).
  • Rapid access menu system with transmitter favourites.
  • Real time measurement (Analogue and Digital DVBT / T2).
  • Spectrum display FM, DAB, VHF and UHF.
  • Constellation display DVBT / T2 (including T2 rotation).
  • Slope test (Ideal for distribution systems).
  • Data logging (Featuring a log all function).
  • 11 Languages selectable (Major European languages).
  • Replaceable input connectors (F type).
  • USB connection for transmitter updates.
  • 12V DC car charger included.
  • Charge from 90 to 250V AC (Internal charger).
  • Select transmitter by region, post code (UK) or favourite.
  • Nylon carry case with accessory pocket.
  • RF Measurement of DAB / FM (Including spectrum display).
  • Masthead amp supply 5V active antenna and 12V DC.
  • High capacity Liion battery pack.
